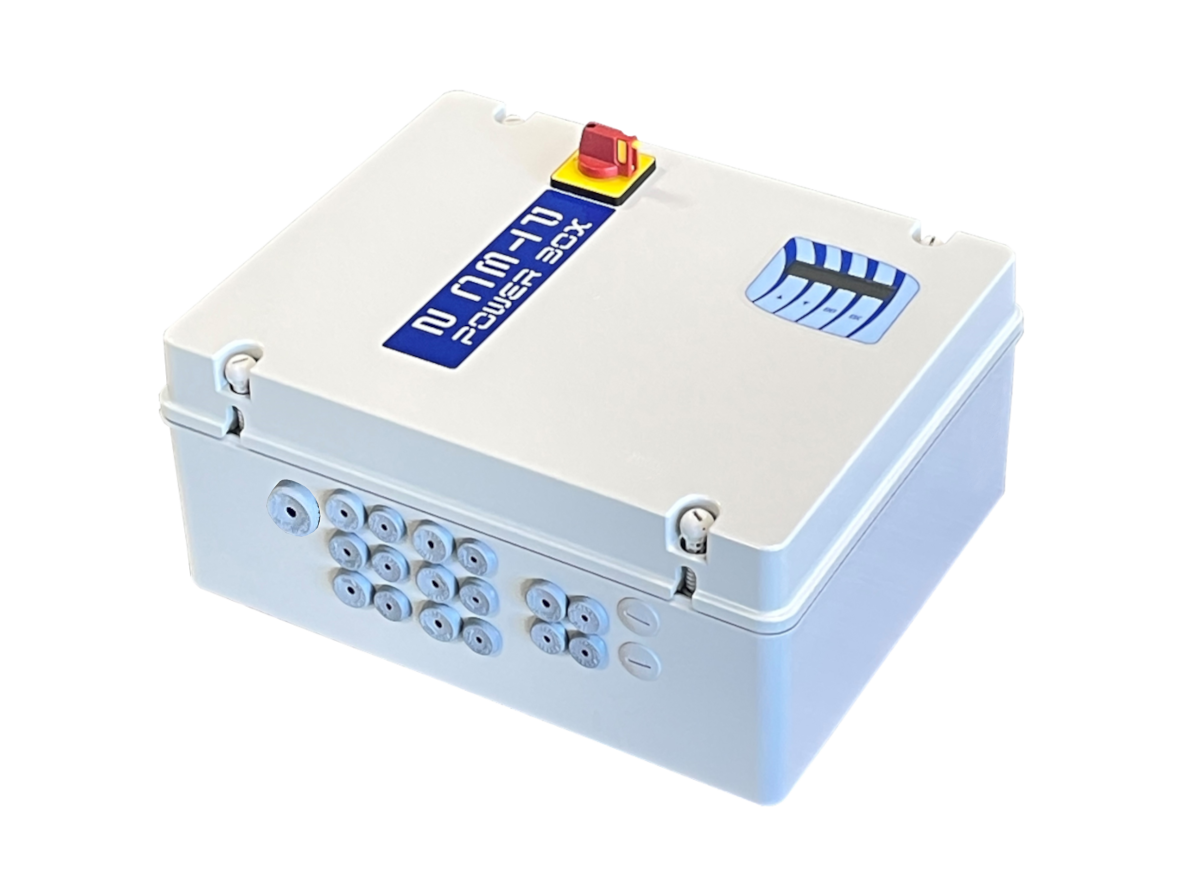

PowerBox
PTec2 Power Box is an innovative
solution for the control of dry coolers and remote capacitors, consisting of a
set of electronic and electromechanical components and a PTec2 control.
Enclosed in a robust polymer case with IP55
protection, the electrical panel includes a knob with a switch for power disconnection, a keypad with
OLED display to display operating parameters, alarms and settings, even at low
temperatures.
The enclosure has cable glands (or cord grip) for connection to the power line and motors, as well as cable glands (or cord grip) for controls. Inside, the PTec2 control controls the control signals based on the received data, measurements and settings. It offers two 0-10V signals to control up to two groups of fans, even on independent circuits.
The dual Modbus connection allows communication with remote monitoring devices and/or fan control via serial communication.
The control panel can be supplied with an automatic forced ventilation kit for applications in high-temperature environments.
This product is designed to be easy to
install and use, thanks to pre-configured settings files.
