Sensata Gas Detector

Request information

Fill out the form to request information on this page.

Name *

Surname *

Email *

Phone *

Company name *

Message * I would like to receive information relating to the page: "Sensata Gas Detector "

I declare that I have read and accept our information on Privacy

* These fields are mandatory.

File: (RGD A2L datasheet)
File: (SGD A3 datasheet)

Gas leak detection device. IP 54 grade. With Modbus RTU output. Compensation with temperature and pressure (viewable with the modbus output).

Code

Detector name

Gas type

Gas

Power Supply

Relè

Response Time

Accuracy

Compliance

Dimensions

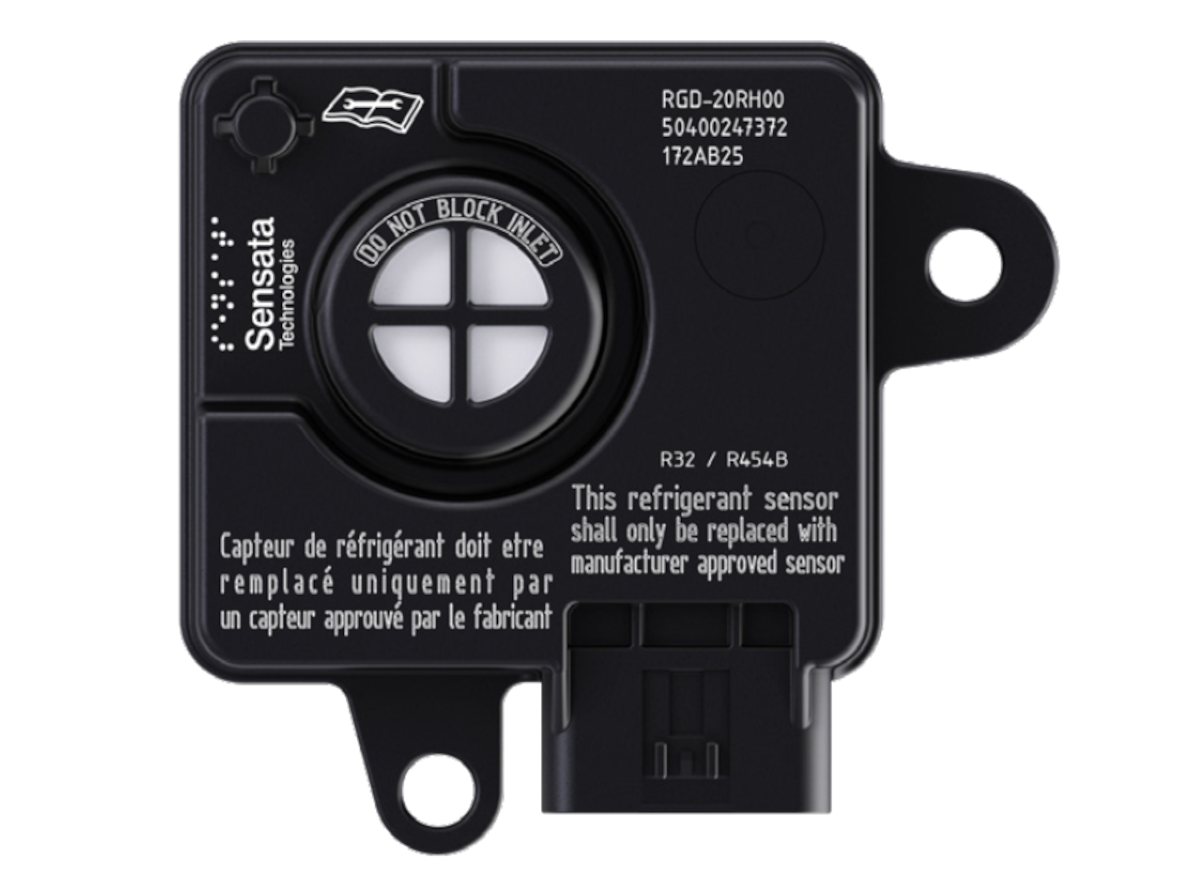

A000014251

RGD-20RH00

A2L

R32 e R454B

9-30VDC 18-30VAC

Yes

T28 of 2.5s and T60 of 5s

±5% LFL

UL 60335-2-40 ed.4 Annex LL, UL 60335-2-89, ROHS, REACH

76.75mm x 73.41mm x 21mm

A000014252

RGD-30RH00

A2L

R454A, R454C, R455A

9-30VDC 18-30VAC

Yes

T28 of 2.5s and T60 of 5s

±5% LFL

UL 60335-2-40 ed.4 Annex LL, UL 60335-2-89, ROHS, REACH

76.75mm x 73.41mm x 21mm

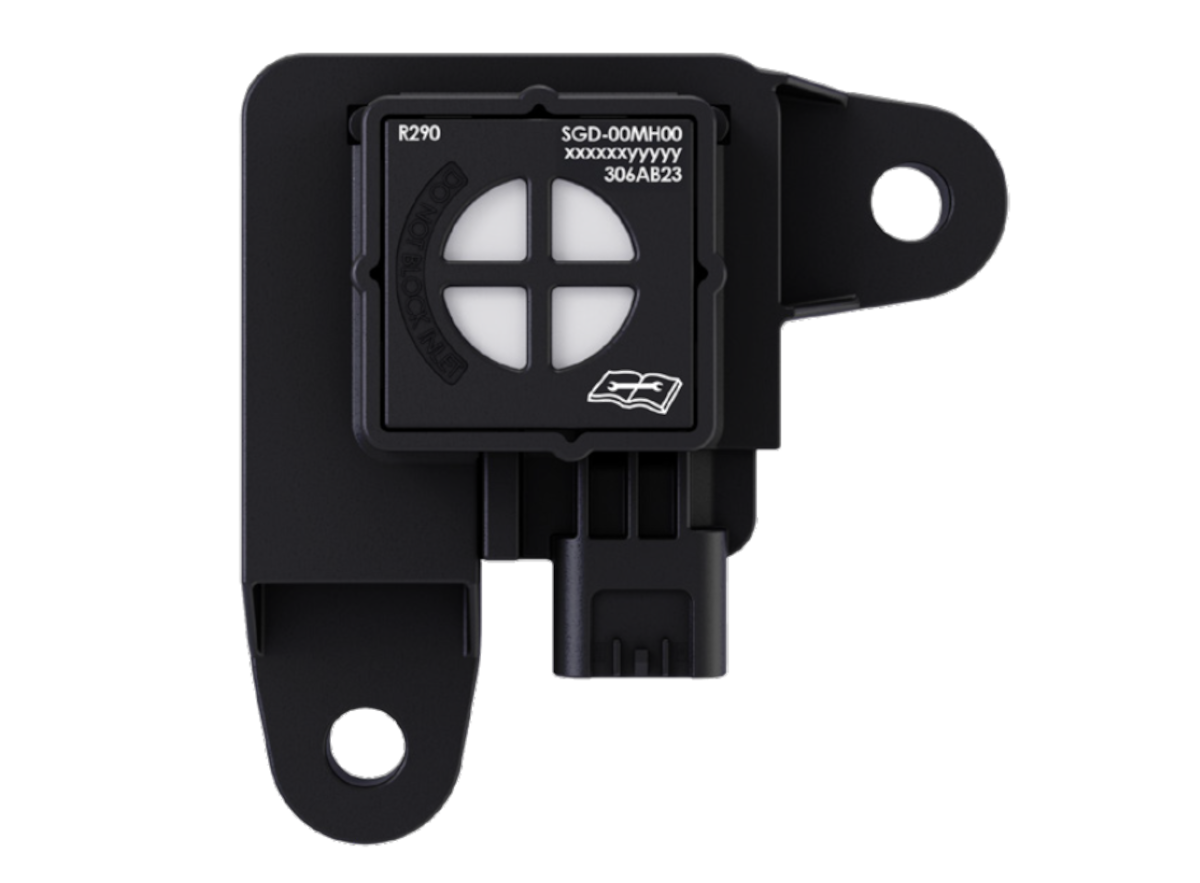

A000014250

SGD-00MH00

A3

R290

5-24VDC(±10%)

No

T60<20s

±2.5% at the nominal conditions of use

IEC 60335-2-40:2022 UL 60335-2-40 ed.4 Annex LL CE, RoHS, REACH

35 x 38.5 x 16-17mm

Code	Detector name	Gas type	Gas	Power Supply	Relè	Response Time	Accuracy	Compliance	Dimensions
A000014251	RGD-20RH00	A2L	R32 e R454B	9-30VDC 18-30VAC	Yes	T28 of 2.5s and T60 of 5s	±5% LFL	UL 60335-2-40 ed.4 Annex LL, UL 60335-2-89, ROHS, REACH	76.75mm x 73.41mm x 21mm
A000014252	RGD-30RH00	A2L	R454A, R454C, R455A	9-30VDC 18-30VAC	Yes	T28 of 2.5s and T60 of 5s	±5% LFL	UL 60335-2-40 ed.4 Annex LL, UL 60335-2-89, ROHS, REACH	76.75mm x 73.41mm x 21mm
A000014250	SGD-00MH00	A3	R290	5-24VDC(±10%)	No	T60<20s	±2.5% at the nominal conditions of use	IEC 60335-2-40:2022 UL 60335-2-40 ed.4 Annex LL CE, RoHS, REACH	35 x 38.5 x 16-17mm
